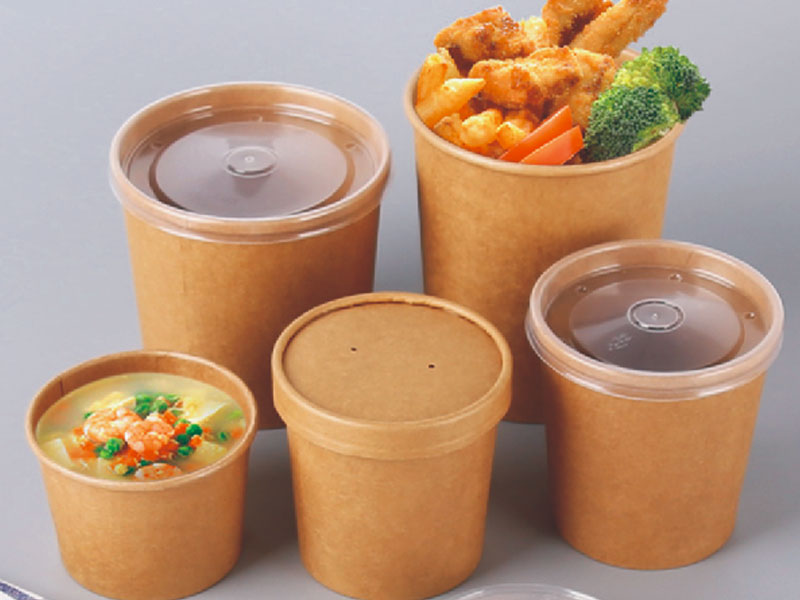

JC-SLW-185 open cam ultrasonic paper salad bowl machine is an ideal equipment for producing paper salad bowls, soup bowls, instant noodle bowls, and other large capacity caliber or other food containers through continuous processes such as automatic paper feeding, ultrasonic sealing, oil injection, bottom punching, heating, embossing, convex rolling, edge rolling, and unloading. This machine adopts touch screen and PLC interaction, and all working parameters can be set on the control panel for easy parameter setting and adjustment.
| Model | JC-SLW-185 |
| Paper Cup sizes | 30-80 OZ |
| Paper Cup Forming Size |
（B）: 110~170 mm （T）: 140~185mm （H): 50~110mm |
| Upper Mouth Diameter | 140-185mm |
| Cup Bottom Diameter | 110-170mm |
| Forming Height | 50-110mm |
| Machine Speed | 60-80pcs/min |
| Machine Net Weight | 3500/3200kg |
| Power Supply | 380V 50Hz 3Phase |
| Work Energy Consumption | 11-14Kw / H |
| Machine Size | 2750*1550*2100mm |
| Paper Grams | 170-450gsm single double PE coated paper |
| Working Air Pressure | 0.6Mpa , 0.6 m³/minute |
