JC-ZBJ-120 Open Cam Ultrasonic Paper Cup Machine use table style, To separate mould system from transmit system ,the transmission parts are set inside of machine body which under the table.The machine are combined with
1.whole body structure under automatic spray lubrication system;
2.Vertical shaft transmission system;3.open cam system ;
4.gear system. All molds are set-up the table ,which are easy for operation .
| Model | JC-ZBJ-120 |

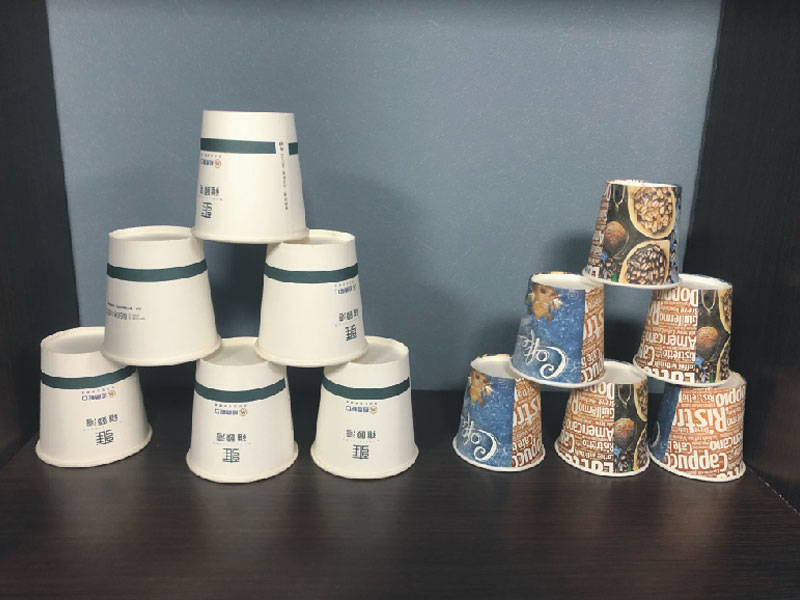

| Paper Cup sizes | 1.5-16OZ (100-450ml) |
| Paper Cup Forming Size |
（B）: 40~70 mm （T）: 45~100 mm （H): 60~135mm |
| Upper Mouth Diameter | 60-135mm |
| Cup Bottom Diameter | 40-70mm |
| Forming Height | 60-135mm |
| Machine Speed | 80-110pcs/min |
| Machine Net Weight | 2100/2300kg |
| Power Supply | 380V 50Hz 3Phase |
| Work Energy Consumption | 8Kw / H |
| Machine Size | 2300*1400*2110mm |
| Paper Grams | 150-350gsm single double PE coated paper |
| Working Air Pressure | 0.6-0.7Mpa , 0.6 m³/minute |
